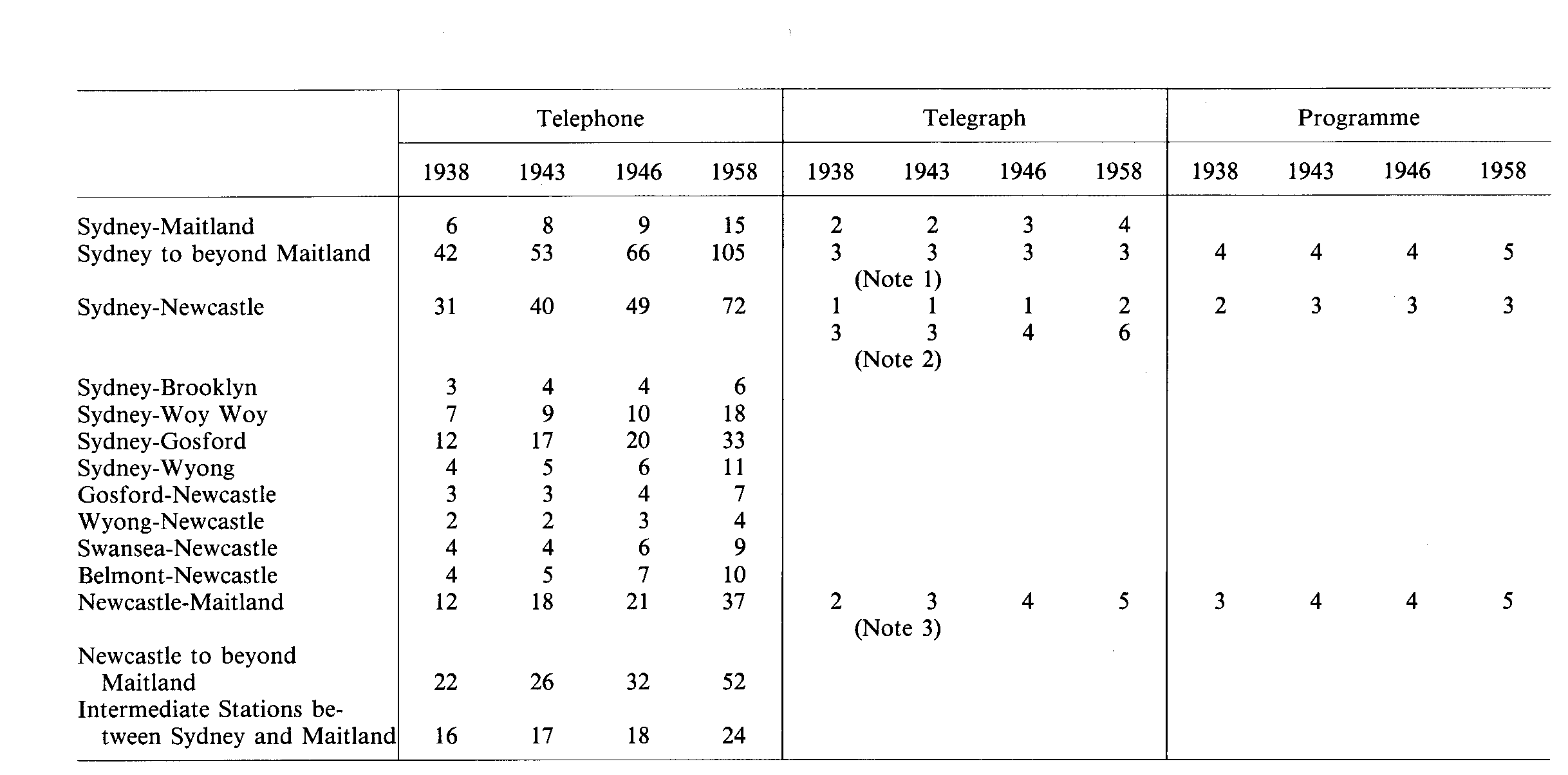

Table 4 Sydney-Newcastle-Maitland Cable -circuit development

Note 1:
Including one special broad band channel for the existing Type B, O. W. telegraph carrier system

Note 2:
D. C. omnibus telegraph circuits

Note 3:
D. C. telegraph circuits

Note 4:
Except where otherwise referred to, telegraph development figures refer to voice-frequency telegraph systems

  Table 4

[Return to Text]
