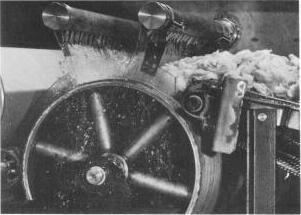

14 The CSIRO jet scour. Instead of immersing the greasy wool in a large volume of scour liquor, in the CSIRO jet the wool is passed under a series of jets of liquor. Less entanglement of fibres results.

  Figure 14

[Return to Text]

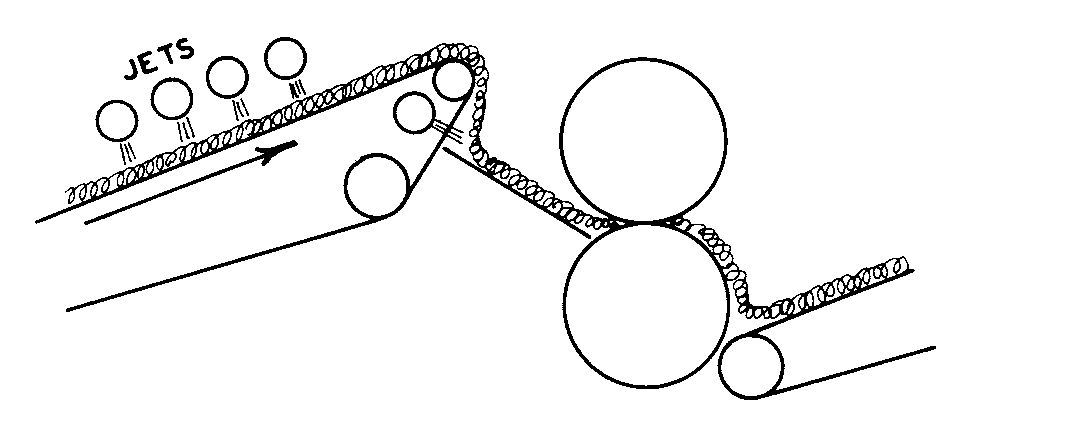

15 Diagram of CSIRO jet scour. See Figure 14.

  Figure 15

[Return to Text]

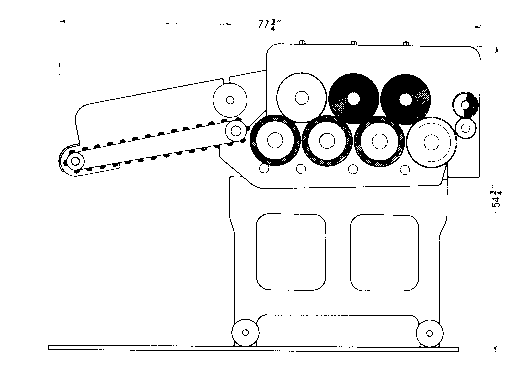

16 The carbonizing process entails treatment of vegetable-containing wool with dilute sulphuric acid, drying and then baking. During the baking, the concentrated acid degrades the vegetable matter, which is then crushed to fragment it in a crusher similar to that shown above.

  Figure 16

[Return to Text]
