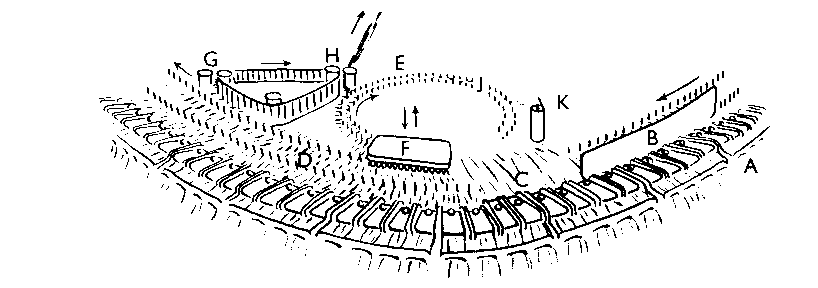

10 Noble combing -separates noil from top. Wool from punch balls A is drawn from the boxes by knife B, lifted from the pins at C and then pressed onto the pin by brush F where the large D and small E circles are closest. As the pins separate by the rotation of the circles, two fringes are formed. The fringe on the large circle is combed by the pins of the small circle and conversely. At G and H the fringes are drawn from the pins which comb the trailing ends of the fibres. The Fibres from G and H are combined to form the 'top' sliver. Short fibres or noil remaining in the small circle at H, are removed from the pins by knives at J and are sucked away at K. Short fibres remaining in the large circle are fed into the small circle at the next cycle of operations.

  Figure 10
